The Mysterious Rose Red Granite Block at Abu Rawash

The Curved Stone at Abu Rawash

abu1

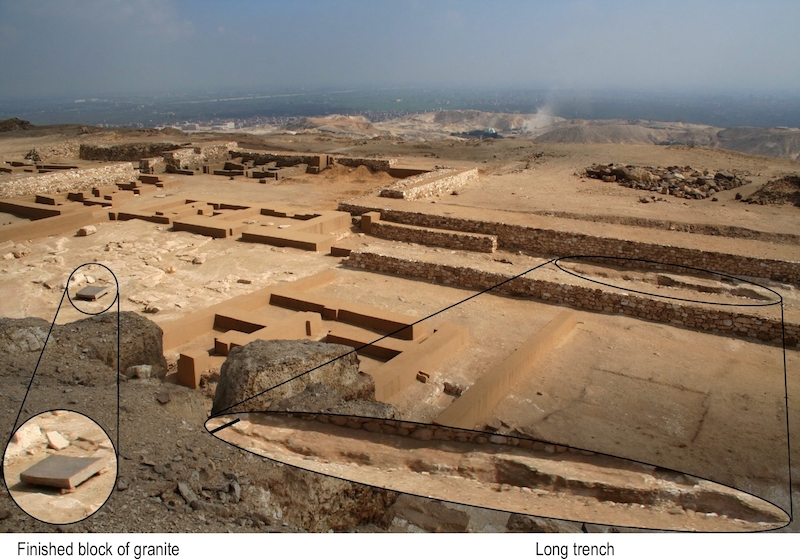

View from the top of the Abu Rawash pyramid

abu2

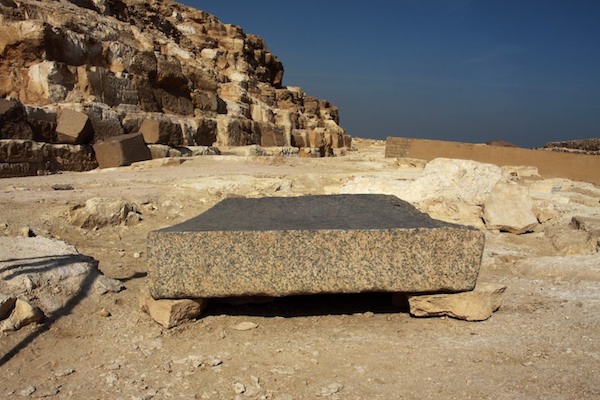

The compound curved granite stone

abu3

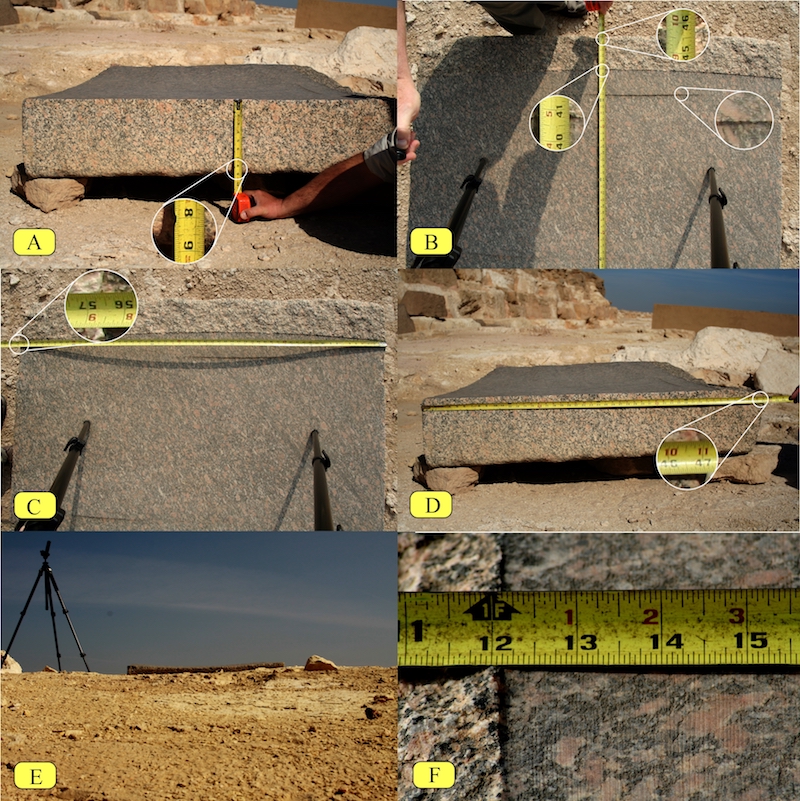

Photographing and measuring the stone

abu4

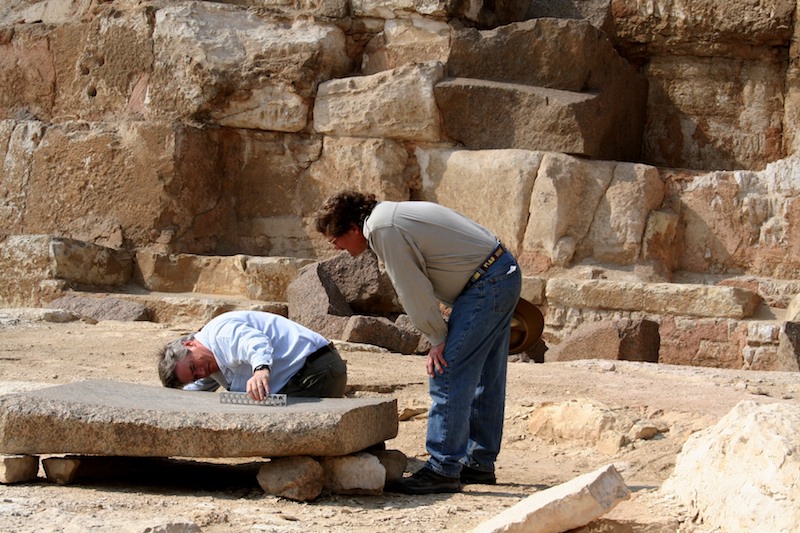

Chris Dunn checks the surface of the stone while David Childress looks on

abu5

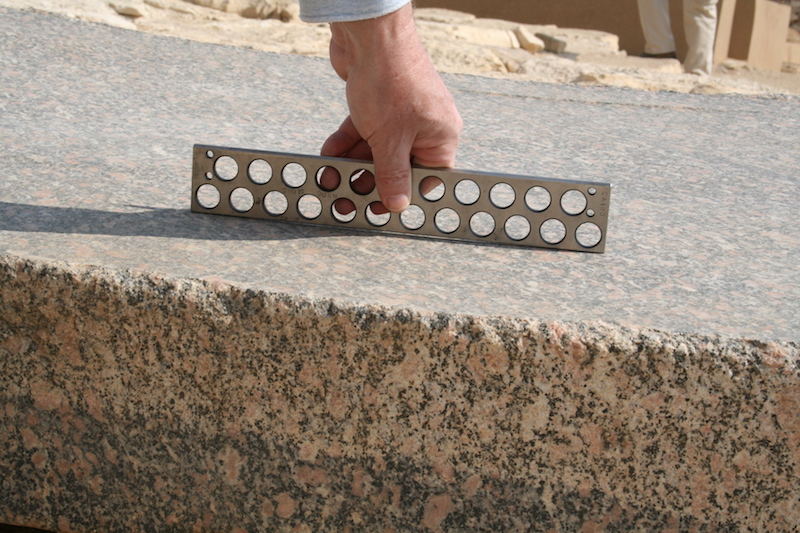

Obvious curve to stone is revealed by straight edge

abu6

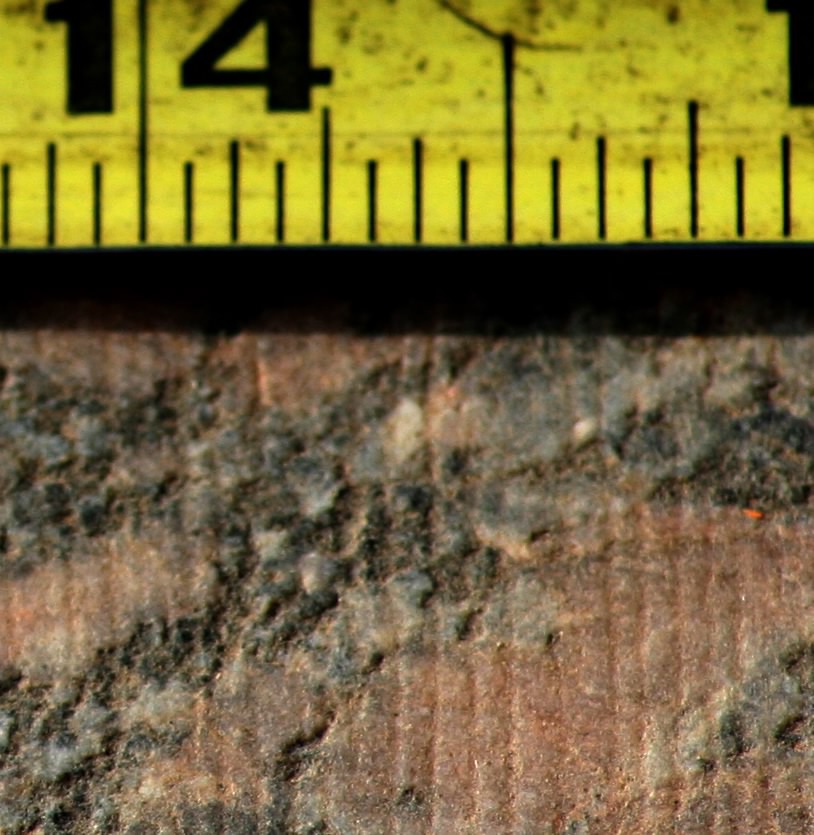

Macro image of the surface of the stone showing the striations of the saw

abu7

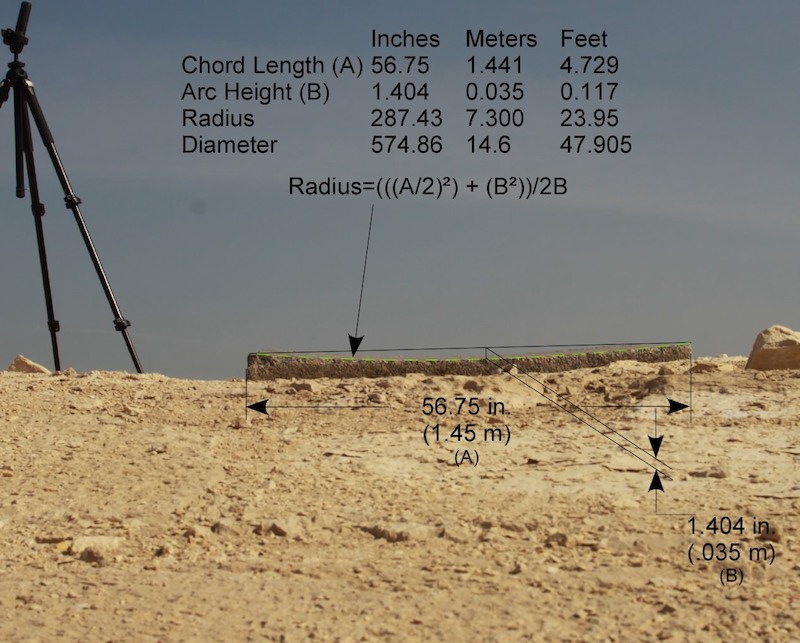

Determining the surface radius using the cord length and sagitta (cord height). The calculations indicate a radius of 23.95ft

abu8

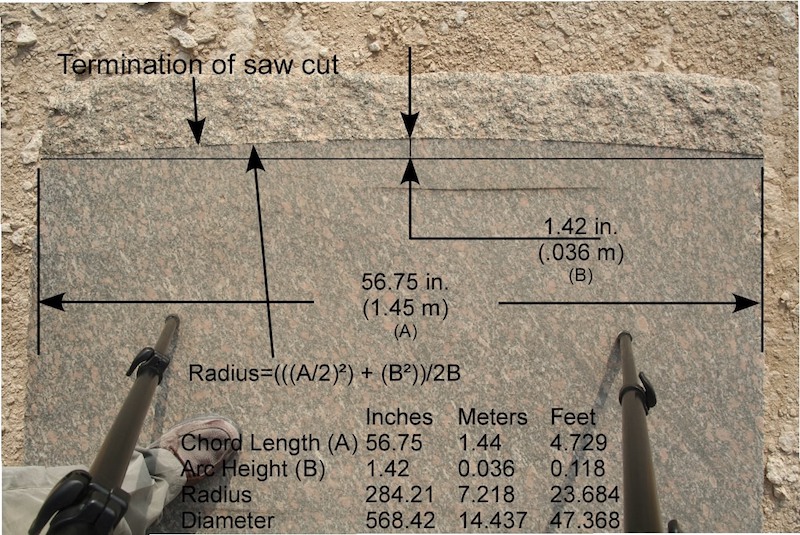

Determining the radius where cutting ended. The calculations indicate a radius of 23.68ft

Top View (X & Y-Axes) End View (Z-axis)
Feet/Rad/Deg Meters Feet/Rad/Deg Meters
Cutter Diameter 37.5 11.43 37.5 11.43
Radius Measured 23.684 7.22 23.95 7.30
Radian Measure .792 .782
Tilt Angle of Cutter 45.4 44.8

Calculations to determine the diameter of a cutter that when tilted will create both radii

abugraph1

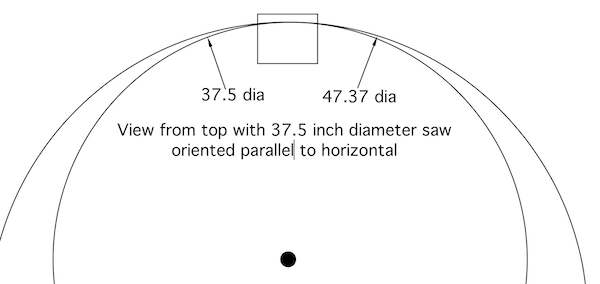

View looking down showing block radius with 37.5 feet diameter saw in a horizontal position

abugraph2

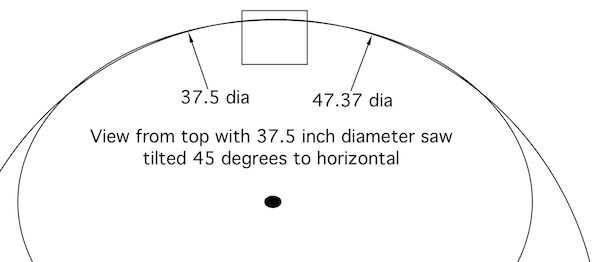

When tilted on a 45 degree angle, a vertical view of the saw shows it to be an ellipse. It is a small section of the ellipse that will produce two large radii. One on the x - y axis (vertical view) and also on the x - z axis (horizontal view along the y axis).

More information on this technique may be found at the following link: Cutting large radius

abu9

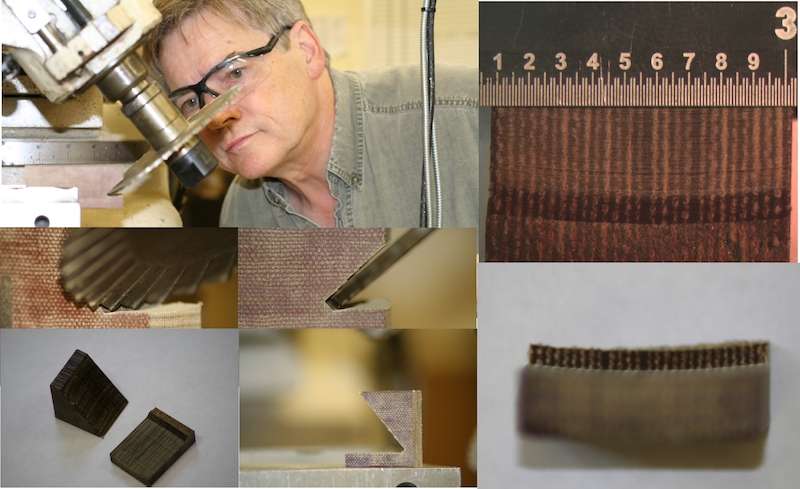

Using calculations to select cutter to create 1/61 scale model in micarta

abu10

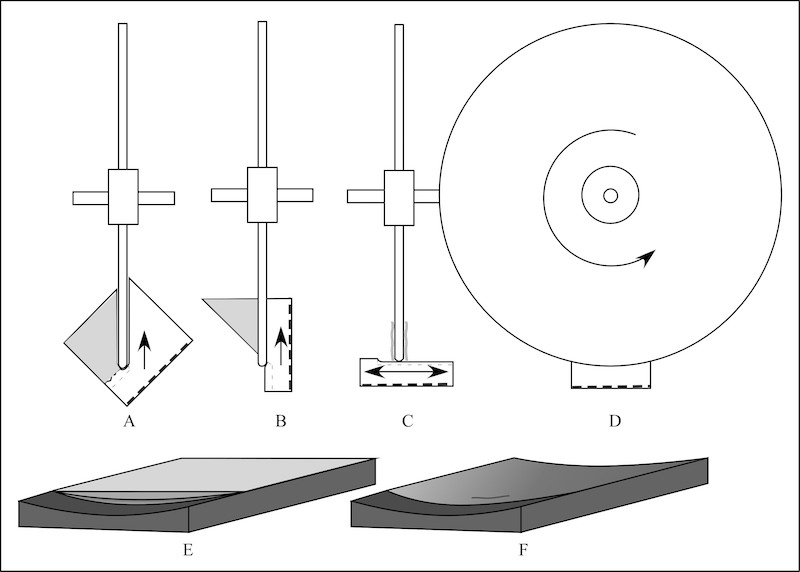

Mental gymnastics on paper trying to address anomolies

abu11

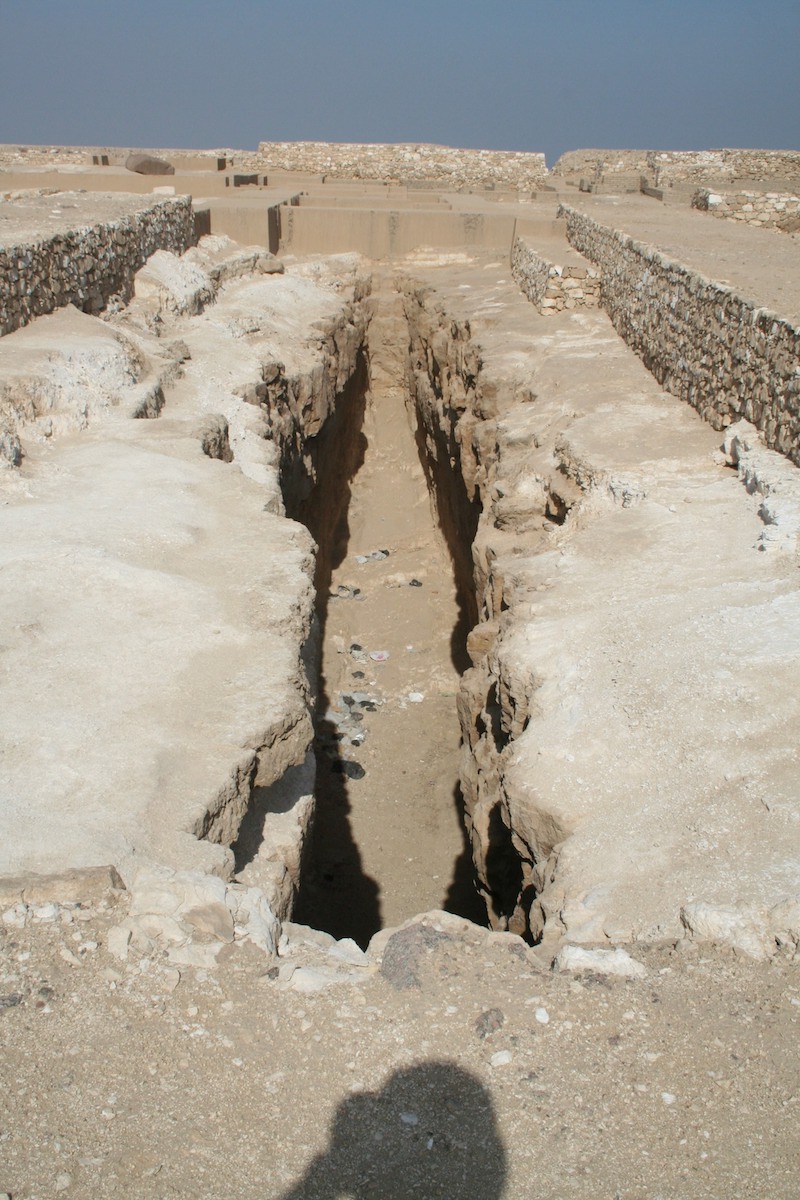

Referred to as a boat pit, this trench answers the question of how they would mount a 37 ft diameter saw

abu12

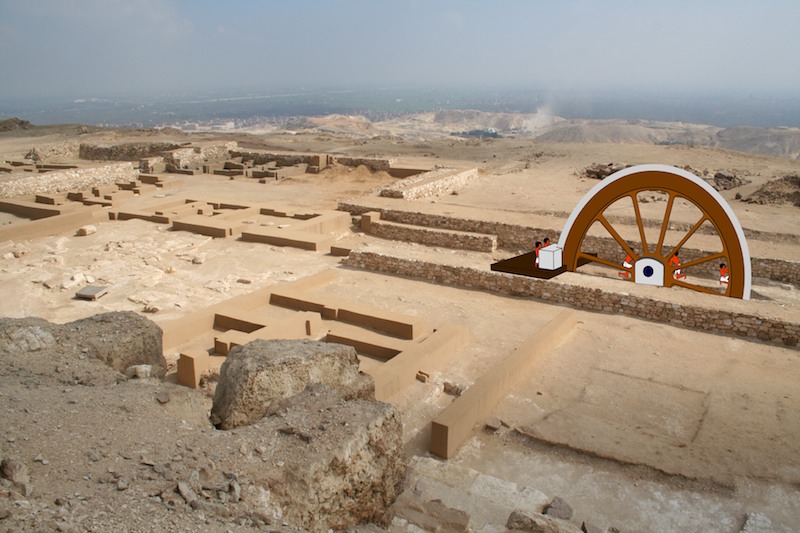

Mega Machines for Mega Builders

abu13

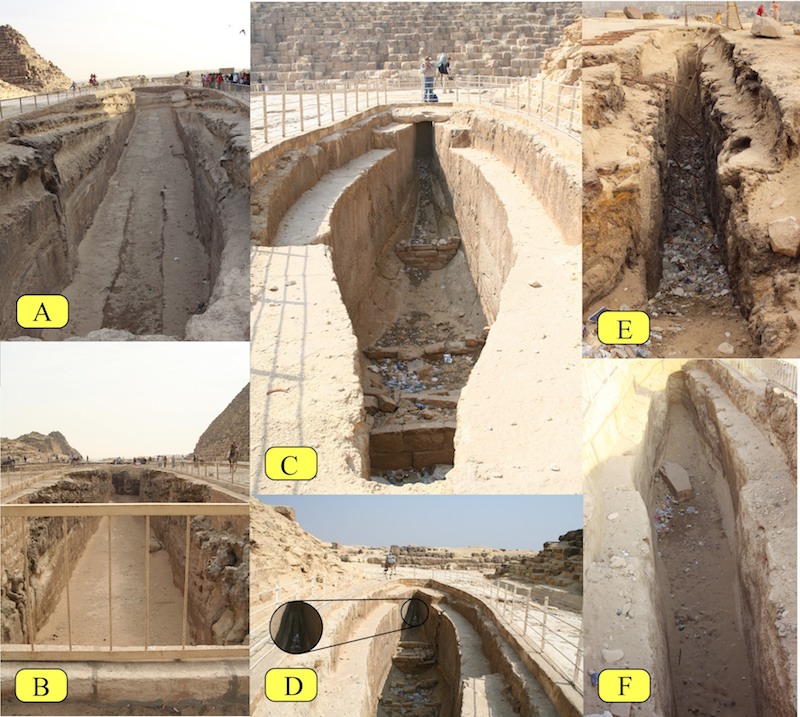

Also labeled as boat pits, numerous trenches are found on the Giza Plateau

abu14

Saw mounted in one of the trenches

abu15

A view of the plateau at sunset

The genius that went into the concept and design of the pyramids was not limited when it came to designing the tools to accomplish the job. Time to give the pyramid builders credit for their true accomplishments, seen and not seen (implied)
